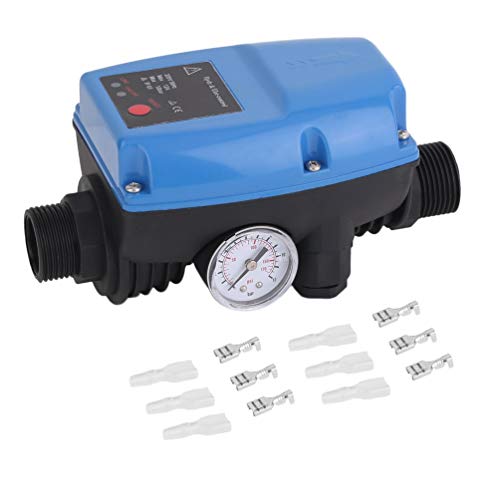

This electronic water pump automatic pressure control switch is made of high quality ABS, durable and long sevice life.
Electronic controlled sensor system design for easy automatic operation.
Compact, efficient, long life motor.
The unit is equipped with a check valve to prevent the pipelinefrom losing pressure.
The automatic water pump controller is fully electronic intelligent pump control device.
Equipped with a pressure gauge, easy to read the pressure value.
Fits most water pumps and as well as the well pump (submersible pump)between 0.3HP and 3HP or the power of pump less than 1.1KW.
Package Size: 200*110*100mm
Rated Voltage: 200V-240V 110-120V
Max Current: 10A
Max Power: 1.1KW
Starting Pressure Setting: 1.2bar 1.5bar 2.2bar
Connection Thread: G1"
Protection Rating: IP65
Max Working Temperature: 60 Centigrate Wiring
Wiring Requirement: Cable Diameter 7.5-9mm
1 x Electronic Water Pump Automatic Pressure Control Switch With Pressure Gauge
1.Please allow slight dimension difference due to different manual measurement.
2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
