Super Farad Capacitor 2.5V-Schutzplatinenbegrenzungsplatte

Specifications:
A high-precision voltage regulator IC basis, for the default regulator 2.5v ± 50mV (R4, R5 resistance adjustment pressure limiting size can be adjusted)
Two. 8A high-power switch, three 2010 chip resistors in parallel into a 0.4 ohm resistor shunt current of up to 5A (considering the heat problem, continued to limit the pressure should not exceed 1A current):

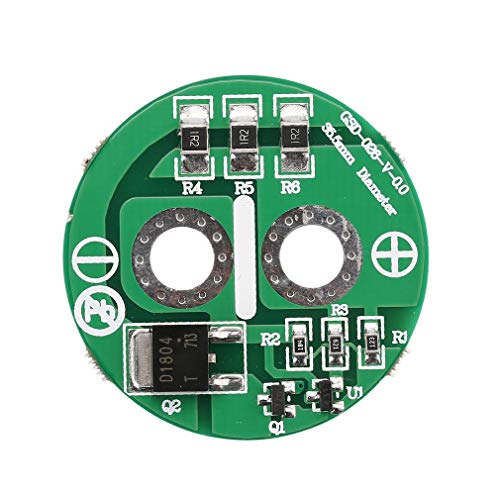

(1) diameter 35mm, fixing holes diameter 5.8mm, the center of the two-hole distance 12.5mm, pad diameter of 10mm. (Meet 600 ---- 700F super capacitor specifications)
Power tube and resistance of the back of a large area copper, improved heat dissipation, and more stable operation.
Color: Green
Size(L x W x H): 35*35*2mm

Package Includes:
1x Super farad capacitor 2.5V

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
