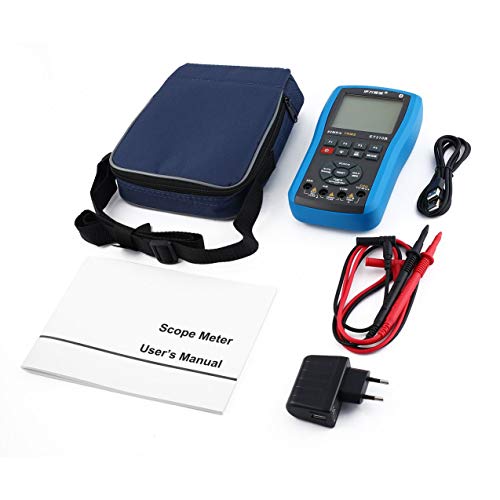

Scope Digital Multimeters Mini Oscilloscope Intelligent Volt Multitester
von Redstrong
Marke
Redstrong
Description:
1.Auto set the meter according to the tested signal size.
2.It can measure AC/DC engine,transducer,circuit,control,UPS and industrial equipments.
3.It's a perfect toolin professional repairing industries.
Specification:
... Blue & Gray
Display:128 x 128 pixel graphic LCD
Back light: White LED,3 levels of brightness
Over range indication: "OL" display
Battery type: 1000mA Li Battery
Battery life:12-16h
Charging time:about 3h
Memory:100 records
Automatic power off: 5-60min adjustable with disable feature
Diode Test: yes
DC voltage range: 400mV/4V/40V/400V/1000V
DC voltage accuracy: ±(0.75%+10)/±(1.5%+10)
AC voltage range(AC+DC measurement is available): 400mV/4V/40V/400V/750V
AC voltage accuracy: ±(1%+10) -- ±(3%+10)
DC current range: 40mA/400mA/4A/20A
DC current accuracy: ±(1.2%+10)
AC current range:40mA/400mA/4A/20A
AC current accuracy: ±(1.5%+10)
Resistance range: 400/4k/40k/400k/4M/40M
Resistance accuracy: ±(1%+5)
Capacitance range: 51.2nF/512nF/5.12F/51.2F/100F
Capa... accuracy: ±(1%+3) -- ±(2%+10)
Frequency range:5.12Hz-5.12MHz
Frequency accuracy: ±(1%+5)
Duty Circle:0.1%-99.9%
Continuity
1.Auto set the meter according to the tested signal size.
2.It can measure AC/DC engine,transducer,circuit,control,UPS and industrial equipments.
3.It's a perfect toolin professional repairing industries.
Specification:
... Blue & Gray
Display:128 x 128 pixel graphic LCD
Back light: White LED,3 levels of brightness
Over range indication: "OL" display
Battery type: 1000mA Li Battery
Battery life:12-16h
Charging time:about 3h
Memory:100 records
Automatic power off: 5-60min adjustable with disable feature
Diode Test: yes
DC voltage range: 400mV/4V/40V/400V/1000V
DC voltage accuracy: ±(0.75%+10)/±(1.5%+10)
AC voltage range(AC+DC measurement is available): 400mV/4V/40V/400V/750V
AC voltage accuracy: ±(1%+10) -- ±(3%+10)
DC current range: 40mA/400mA/4A/20A
DC current accuracy: ±(1.2%+10)
AC current range:40mA/400mA/4A/20A
AC current accuracy: ±(1.5%+10)
Resistance range: 400/4k/40k/400k/4M/40M
Resistance accuracy: ±(1%+5)
Capacitance range: 51.2nF/512nF/5.12F/51.2F/100F
Capa... accuracy: ±(1%+3) -- ±(2%+10)
Frequency range:5.12Hz-5.12MHz
Frequency accuracy: ±(1%+5)
Duty Circle:0.1%-99.9%
Continuity
