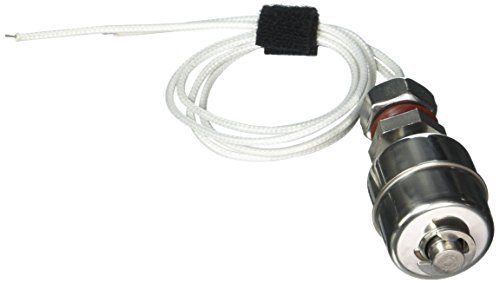

Edelstahl Schalter Wasser Level Liquid Float Sensor

Specifications:Product NameFloat SwitchContactsNO+NCMax Contact Rating10WMax Switch Voltage100V DCMax Switch Current0.5AMax Breakdown Voltage220V DCMax Carry Current1.0AMax Contact Resistance100mΩTemperature Rating-10 ~ +85 DegreeMaterialStainless SteelFloat Ball Size27 x 26mm(D*H)Screw Thread Diameter9mmWashered Nut Diameter17mmRetaining Clip Diameter15mmBody Total Length61.5mmCable Length35cmColorWhite and Silver ToneWeight46gPackage Content1 x Float SwitchDescription:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.It can be easily converted from normally open to normally close by inverting the float.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
