Noyafa NF-388 Multifunktions Netzwerkkabel Tester Tracker RJ45 LAN Tester

Single board computer software watchdog design and reliable operation.

With 8 remote identifiers, more easy to work.

Large screen to display test result clear, simple and easy use.

Specifications:

Model Number: NF-388

Port: RJ45, RJ11, BNC, USB

Test length: RJ45

Wiremap Type: RJ45, BNC Cable

Tracking Type: RJ45, RJ11, BNC, USB and Metal Cable

Other Function: LED Flash and Loud Speaker

Material: plastic

Color: red, blue

NF-388 Transmitter specifications

Indictor: LCD 53x25 mm, with back light

Tone frequency: 225 Hz

Max. distance of transmission: 2 km

Max. distance of cable map: 300m

Max. working current: Less than 70mA

Tone mode: 2 Tone adjustable

Max. signal voltage: 15Vp-p

Function and faults LCD display: LCD display ( wiremap, Tone, short, No adapter, Low battery )

Cable map indication: LCD (#1-#8)

Shielded indication : LCD ( #9)

Voltage protection: AC 60V/DC 42V

Battery Type: DC9.0VNEDA 1604/6F22 DC9V x 1pcs not included

Transmitter Dimension185x80x32mm

NF-388 Receiver specifications

Frequency: 225kHz

The Max. working current: Less than 70mA

Ear jack: 1

LED illumination: 2

Dimension(LxWxD):218x46x29 mm

NF-388 Remote unit specifications

Compatible connectors: RJ11, RJ45, Coacial, USB

Remote units: 8

Receiver Dimension(LxWxD): 160x70x40mm

Power: 9V Alkaline battery (not included)

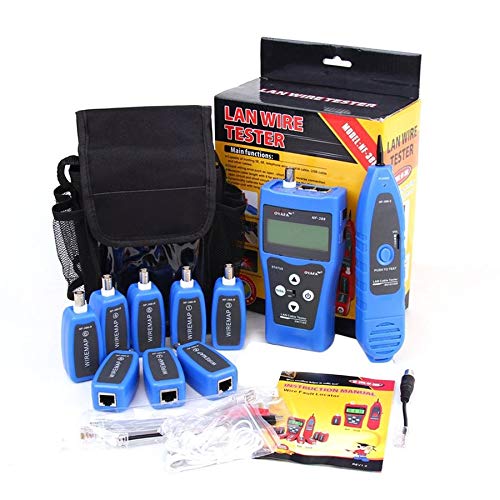

Package included:

1 x Transmitter

1 x Receiver

8 x Adapter

1 x Instruction manual
