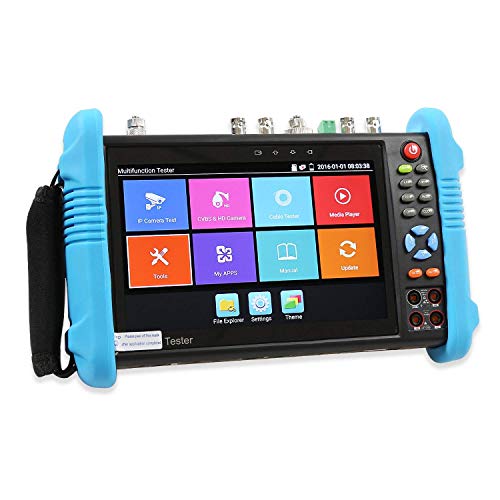

Yblntek 17,8 cm Touch Bildschirm IP Kamera Tester 9800-plus

5MP TVI(2560x1944P 12.5FPS) test, 5MP AHD(2560x1944P 12.5FPS) test, 4MP CVI(2560x1440P 25F/30F) test, 3G-SDI/HD-SDI/EX-SDI test(1080P 25/30/50/60fps) Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement Optical power meter: for optical power testing and Fiber link loss relative measurement Visual fault locator : Emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. Compatible with almost all models' cameras, such as Dahua, HIKVISION, Samsung and Axis PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank UTP cable, telephone cable's sequence and connectivity test. CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement Cable tracer, find a connected cable from mess cables by tone generator POE/DC12V voltage and power measurement IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address It supports batch editing IP address Tester, android version mobile phone and PC display at the same time by TesterPlay Dhcp server Audio in /out, support record and save the audio 12V 2A power output and USB 5V power output 8GB SD card included

Lithium Ion Polymer 7.4V/5400mAh Battery, working time lasts 10 hourNetwork + analog + CVI4.0 + TVI4.0 + AHD3.0 camera image test + network cable TDR
