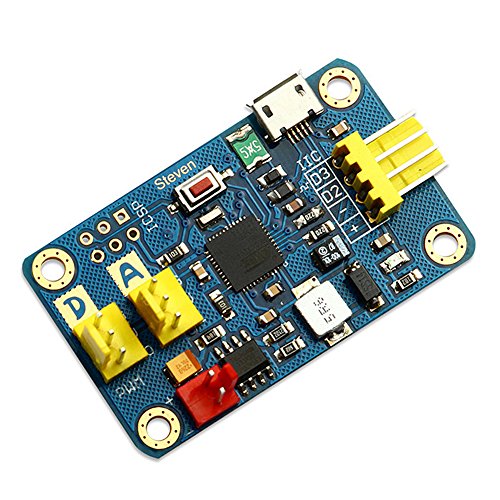

Arduino Mini Controller ATMEGA32U4 Arduino Steven Controller

Builded with master chip ATMEGA32U4, the mini controller is easy to use and very powerful. It is in a small volume with a digital IO, an analog IO and an I2C interface, which is very suitable for more stringent requirements to control the volume of the occasion. By supplying an external power(7-15V), the digital port can drive servos work. There are four M3 mounting holes onboard, using immersion gold process, flexible in using and elegant in appearance.

Specifications: Item No: RB-01C102
Microcontroller: ATMEGA32U4 (processing speed of up to 16MIPS)
Working Voltage: DC + 5V (USB direct power supply)
The external power supply voltage: Recommended DC + 7V ~ + 15V
Output voltage: DC + 5V
Digital Interface: D2, D3, D10 (D2, D3 for I2C)
Analog Interface: A1
Size: 30mm x 50mm
Weight: 8g
The pin definition:
D2: digital pin 2
D3: digital pin 3
10: digital pin 10
1: Analog Pin 1
- / G: Power ground
+ / V:. power positive
