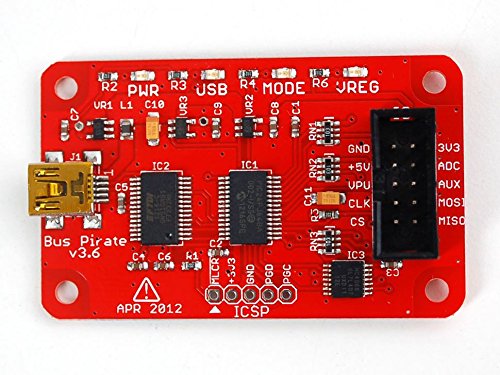

Adafruit Bus Pirate - BPv3.6 [ADA237]

Interfacing a new microchip can be a hassle. Breadboarding a circuit, writing code, hauling out the programmer, or maybe even prototyping a PCB. We never seem to get it right on the first try.

The 'Bus Pirate' is a universal bus interface that talks to most chips from a PC serial terminal, eliminating a ton of early prototyping effort when working with new or unknown chips. Many serial protocols are supported at 0-5.5volts, more can be added.

Adafruit is the official US distributor of Ian Lesnet's Bus Pirate, each purchase directly supports Dangerous Prototypes! You may also want to pick up a probe set .

Protocols: 1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.

Features:

USB interface, USB powered0-5.5volt tolerant pins0-6volt measurement probe1Hz-40MHz frequency measurement1kHz - 4MHz pulse-width modulator, frequency generatorOn-board multi-voltage pull-up resistorsOn-board 3.3volt and 5volt power supplies with software resetMacros for common operationsBus traffic sniffers (SPI, I2C)A bootloader for easy USB firmware updatesTransparent USB->serial bridge mode10Hz-1MHz low-speed logic analyzerCustom support in AVRDUDE, FlashromAVR STK500 v2 programmer cloneScriptable from Perl, Python, etc.Translations (currently Spanish and Italian)
