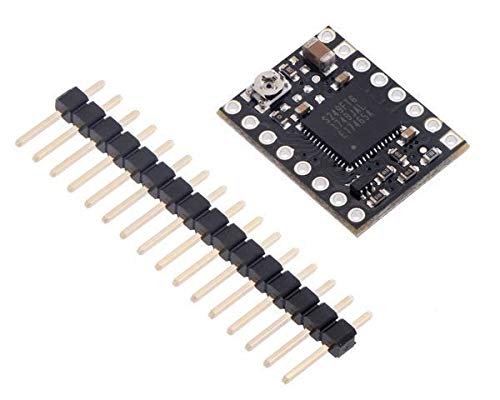

Pololu TB67S249FTG Stepper Motor Driver Compact Carrier
von Pololu
This breakout board for Toshiba’s TB67S249FTG microstepping bipoloar stepper motor driver is arranged in the popular 16-pin Pololu form factor, making it a more compact alternative to our full breakout. It features adjustable current limiting and seven microstep resolutions (down to 1/32-step). Additionally, it dynamically selects an optimal decay mode by monitoring the actual motor current, and it can automatically reduce the driving current below the full amount when the motor is lightly loaded to minimize power and heat. The TB67S249FTG has a wide operating voltage range of 10 V to 47 V, and our carrier board can deliver approximately 1.6 A per phase continuously without a heat sink or forced air flow (up to 4.5 A peak). It features built-in protection against under-voltage, over-current, and over-temperature conditions.
Simple step and direction control interfaceSeven different step modes: full-step, non-circular half-step, circular half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-stepAdjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step ratesMotor supply voltage: 10 V to 47 VMaximum continuous current per phase without additional cooling:TB67S249FTG: 1.6 A (4.5 A peak)Motor Driver: TB67S249FTGMinimum Operating Voltage: 10VMaximum Operating Voltage: 47VContinuous Current Per Phase: 1.6AMaximum Current Per Phase: 4.5AMinimum Logic Voltage: 2VMaximum Logic Voltage: 5.5VMicrostep Resolution: Full, Non-Circular 1/2, 1/2, 1/4, 1/8, 1/16, 1/32Current Limit Control: PotentiometerReverse Voltage Protection: No
