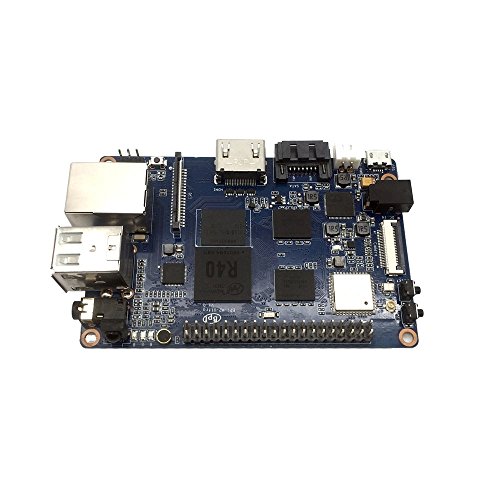

bpi-m2u [v1.1]

Hardware Spezifikation Soc Allwinner R40/V40 CPU QuadCore ARM CortexA7 @ 1.5 GHz ARM CortexA7 QuadCore 512 KB L2Cache (shared between four cores) 32 KB (Instruction) / 32 KiB (Data) L1Cache per core SIMD NEON, VFP4 GPU ARM Mali400 MP2 Memory 2 GB DDR3 (geteilt mit GPU) Speicher On Board 8GB eMMC Flash Micro SDCard slot SATA 2.0 Port (USBtoSATA bridge) Verbinden mit bpi SATA Kabel Netzwerk 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) WiFi 802.11 b/g/n (AP6212 V1544) Bluetooth BT4.0 Video Output(s) HDMI 1.4 (Type A Full) MIPI Display Serial Interface (DSI) for raw LCD Panel Audio Input(s) On board microphone Audio Output(s) 3.5mm jack and HDMI Remote IR Receiver GPIO 40 Pin Header Switches Reset, Power and Uboot LED 3 LEDs (R,G,B) and LED of network interface card Stromquelle 5 volt @2A via DC Power PStromversorgung Banana Pi 5V/2A PowerSupply Kühler Passiver Kühler Cases bpim3 acrylic case bpim3 wooden wmschi
