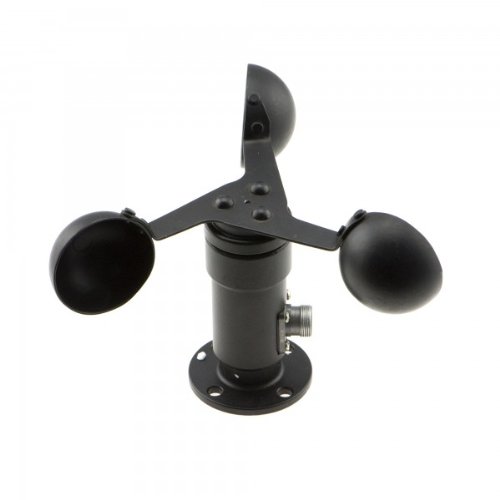

DFRobot Anemometer Kit (0-5V)

Ever want to build your own weather station This anemometer is made of shell, wind cups and circuit module. It has built-in photovoltaic module, industrial microcomputer processor, and standard current generator. Made with aluminium alloy, the anemomter is of high strength, weather resistance and corrosion resistance. The millitary quality interface ensures long life of this anemometer, at the same time enhancing the accuracy of wind speed acquisition.
Together with other components, this anemometer can be widely used in measureing wind in areas such as engineering, railways, docks, power plants, meteorological, cableway, environment study, agriculture, energy monitoring, health study with corresponding signal output.
With the instructions and sample code, users can easily get wind speed level through voltage signal output (0 to 5v).

Specification:
... cups
Output signal range:0-5V
Supply voltage: DC12-24V
Power consumption:Voltage MAX¡Ü0.3W
Start wind speed:0.4-0.8m/s
Resolution:0.1m/s... measurement range:0-30m/s
System error:¡À3%
Transmission distance:More than 1000m
Transmission medium:Cable transmission
Connection mode:Three wires
Working temperature:-40¡ãC~80¡ãC
Wiring map:VCC (Red), GND (Black),Voltage (Yellow), Current (Blue)
Weight:1Kg
Shipping List:
Anemometer x1
Waterproof connector and 3m standard cable x1
Screw Kit x1
