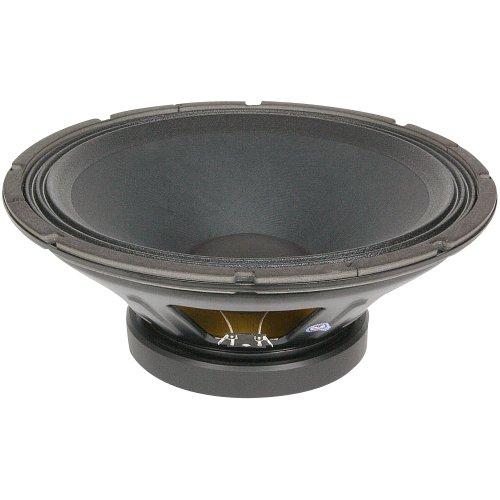

Eminence KAPPA 15 LAUTSPRECHER

Empfohlen als Tief-/Mitteltöner oder Tieftöner für professionelle Audioanwendungen (Bassreflex-Gehäuse). Auch für Bassgitarre geeignet.

Nominal Basket Diameter 15", 381 mm

Nominal Impedance 8 ohms

Power Rating Watts 450 W / Music Program 900 W

Resonance 33 Hz

Usable Frequency Range 52 Hz - 2.3 kHz

Sensitivity 100.5 dB

Magnet Weight 80 oz.

Gap Height 0.375", 9.53 mm

Voice Coil Diameter 3", 76.2 mm

Resonant Frequency (fs) 33 Hz

DC Resistance (Re) 5.22

Coil Inductance (Le) 1.05 mH

Mechanical Q (Qms) 8.90

Electromagnetic Q (Qes) 0.33

Total Q (Qts) 0.32

Compliance Equivalent Volume (Vas) 321.3 liters / 11.35 cu. ft.

Peak Diaphragm Displacement Volume (Vd) 343 cc

Mechanical Compliance of Suspension (Cms) 0.31 mm/N

BL Product (BL) 15.7 T-M

Diaphragm Mass inc. Airload (Mms) 76 grams

Efficiency Bandwidth Product (EBP) 98

Maximum Linear Excursion (Xmax) 4.0 mm

Surface Area of Cone (Sd) 856.3 cm²

Maximum Mechanical Limit (Xlim) 11.6 mm

Recommended Enclosure Volume Sealed N/A Vented 45-113 liters/1.6-4 cu.ft.

Overall Diameter 15.16", 384.9 mm

Baffle Hole Diameter 13.77", 349.6 mm

Front Sealing Gasket fitted as standard

Rear Sealing Gasket fitted as standard

Mounting Holes Diameter 0.25", 6.4 mm

Mounting Holes B.C.D. 14.56", 369.9 mm

Depth 6.13", 156 mm

Copper voice coil

Polyimide former

Ferrite magnet

Vented core

Pressed steel basket

Paper Cone

Cloth cone edge

Solid composition paper dust cap
