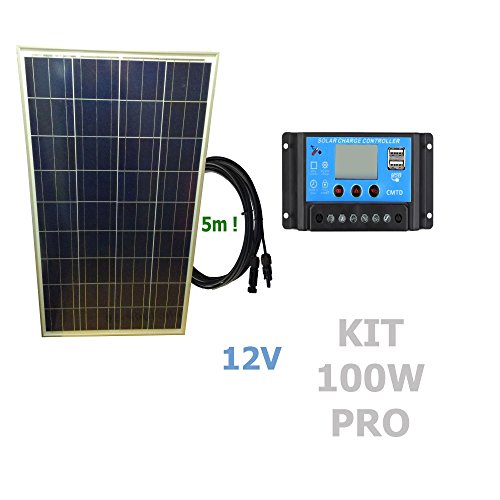

Kit 100 W Pro 12 V Solarpanel

Kit Pro 100 W 12 V Solar Panel
Zusammensetzung des kit Solar:
Solarmodul Photovoltaik 100 W 12 V Kabel 5 m
Solar Laderegler 20 A 12 V/24 V mit Display und 2 USB LCD
Technische Daten:
Solarmodul Photovoltaik 100 W 12 V Kabel 5 m
Cell Size: 156 mmx156 mm
Module Dimension: 1127 mmx676mmx35 mm
No. Of Cells: 36
Weight: 9 kg
Typed of Connector: MC4
Junction Box: IP65 Rated, with Bypass Diodes
No. Of Mounting holes: 8
(1000 W/m²; 25 °C; am1.5)
MAX System Voltage: 715 V
Maximum Power Pmax: 100 W
Voltage at Maximum Power Point Vmpp: 17.7 V
Current at Maximum Power Point IMPP: 5.65 A
Open Circuit Voltage Voc: 22 V
Short Circuit Current Isc: 6.21 A
Solar Laderegler 20 A 12 V/24 V mit Display und 2 USB LCD
Rated Voltage: 12 V/24 V Auto
Rated Current: 20 A
Standby Current: < 10mA
Float voltage: 13.7 V (Adjustable, default Value)
Discharge Cutoff voltage: 10.7 V (Adjustable, default Value)
Discharge Recovery Voltage: 12.6 V (Adjustable, default Value)
USB Output: 5 V/3 A
Working Temperature: 35 °C to + 60 °C
Dimensions: 150 * 78 * 35 mm
Weight: 150 g
