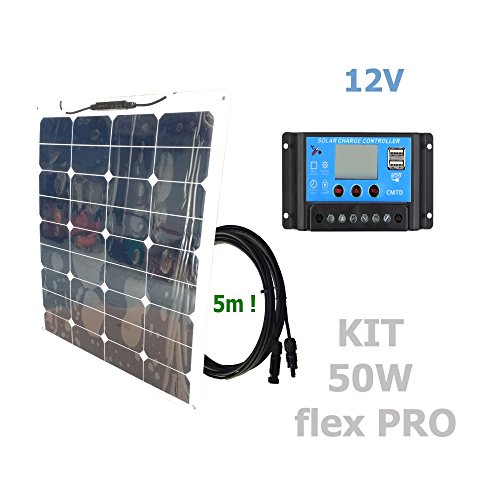

Kit 50 W 12 V Solarpanel semi-flexible Flex Pro

Flex Pro Kit 50 W 12 V Solarpanel semi-flexible
Zusammensetzung des kit Solar:
Solarpanel semi-flexible 50 W 12 V Kabel 5 m Sunpower
Solar Laderegler 20 A 12 V/24 V mit Display und 2 USB LCD
4 mm2 mit 1 Paar 5 m Solar-Kabel und MC4 Stecker für Kabel
Technische Daten:
Solarpanel semi-flexible 50 W 12 V Kabel 5 m Sunpower
Cell Size: 125 mmx125 mm Monocrystalline Solar Cell Back Contact Sunpower
Module Dimension: 625 mmx560mmx3 mm
No. Of Cells: 32
Weight: 1 kg
Typed of Connector: MC4
Junction Box: IP65 Rated, with Bypass Diodes
Kabel Length: 5 m; 4 mm2
No. Of Mounting holes: 4
(1000 W/m²; 25 °C; am1.5)
MAX System Voltage: 1000 V
Maximum Power Pmax: 50 W
Voltage at Maximum Power Point Vmpp: 17.6 V
Current at Maximum Power Point IMPP: 3.13 A
Open Circuit Voltage Voc: 20.8 V
Short Circuit Current Isc: 3.39 A
Solar Laderegler 20 A 12 V/24 V mit Display und 2 USB LCD
Rated Voltage: 12 V/24 V Auto
Rated Current: 20 A
Standby Current: < 10mA
Float voltage: 13.7 V (Adjustable, default Value)
Discharge Cutoff voltage: 10.7 V (Adjustable, default Value)
Discharge Recovery Voltage: 12.6 V (Adjustable, default Value)
USB Output: 5 V/3 A
Working Temperature: 35 °C to + 60 °C
Dimensions: 150 * 78 * 35 mm
Weight: 150 g
4 mm2 mit 1 Paar 5 m Solar-Kabel und MC4 Stecker für Kabel
