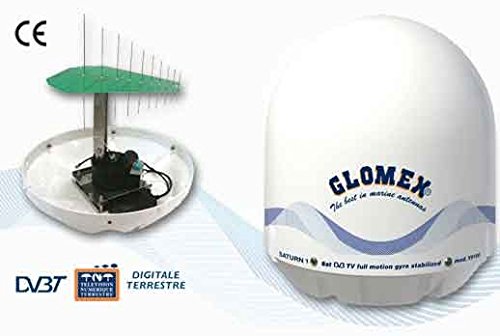

SATURN - DIRECTIONAL DVBT TV ANTENNA - 50cm diam

The V9160SATURN is a directional TV antenna proposed by Glomex in order to meet the operational and aesthetic requirement of yachtsmen.
The directional antenna is contained inside a radome equal to that housing the Saturn satellite system.
This variety of choice allows the installation on board your boat of several types of antennas without changing the aesthetic balance of the whole.
The V9160SATURN can receive polarized signals both vertically (thanks to devices going through the radiating element) and horizontally.
It allows an excellent view of both analog and digital terrestrial TV in any place, including, because of natural obstacles (for instance rocks or fiords, etc.) when only vertical polarized signals are received.
SUPPLIED ACCESSORIES:
50023/98 AMPLIFIER.
20M (66') COAXIAL CABLE to connect the antenna with the amplifier.
1,5 M (5') COAXIAL CABLE to connect the amplifier to the TV / Decoder.
INFRARED ANTENNA REMOTE CONTROL.
Technical Specifications

ANTENNA DIAMETER
500 mm (20'')
ANTENNA HEIGHT
560 mm (22'')
BASE DIAMETER
500 mm (20'')
ANTENNA WEIGHT
8 kg (17.63 lb)
RADOME MATERIAL
U.V. resistant ASA
ANGLE OF RECEPTION
60°
POLARIZATION
Horizontal/Vertical
IMPEDANCE
75 ohms
FREQUENCY RANGE
170/220 MHz (VHF) - 470/860 MHz (UHF)
GAIN AVERAGE
27.5 dB
NOISE FACTOR
2,1 dB
POWER CONSUPTION
300 mA (motor moving) - 150 mA (stand by mode)
POWER SUPPLY
12/24 Vdc
ANTENNA AMPL/BY PASS
Yes
ADJUSTABLE GAIN
Yes
TV SET MAX
2
TERMINATION
F female
CONNECTOR SUPPLIED
F male gold plated connector (V9144)
A/B SWITCH
No
